How Gummies Are Made: Ingredients, Cooking, Molding & Commercial Production
Gummy Molds Team
Gummies are made by combining a sweetener system with a gelling ingredient such as gelatin or pectin, concentrating the mixture to the required solids, adding acids, flavors, colors or functional ingredients at controlled points, forming the hot mass into cavities, allowing it to set, then demolding, conditioning, finishing and packaging it. Commercial production follows the same basic logic as small-batch gummy making, but every stage must be controlled for repeatable weight, texture, flavor, moisture and shelf stability.
There is no single universal gummy process. A gelatin gummy, pectin gummy, starch-molded gummy and starchless silicone-molded gummy may use different temperatures, hold times, depositing windows and conditioning requirements. The most useful way to understand gummy manufacturing is therefore as a sequence of controlled stages rather than one fixed recipe.
The Gummy Manufacturing Process at a Glance
| Stage | Purpose | Typical controls |
|---|---|---|
| 1. Formulation | Define sweetness, gel system, flavor and target texture | Ingredient ratios, gelatin Bloom or pectin type, acid system |
| 2. Weighing & preparation | Prepare ingredients accurately | Weights, hydration, premixes, traceability |
| 3. Cooking/concentration | Dissolve ingredients and remove water | Temperature, time, Brix/solids, agitation |
| 4. Final additions | Add sensitive ingredients at the right point | Temperature, pH, mixing, hold time |
| 5. Depositing/forming | Create the gummy shape and dose | Mass temperature, viscosity, deposit weight, cavity fill |
| 6. Setting | Build enough structure to handle the gummy | Time, temperature, gel system |
| 7. Demolding | Remove gummies without damage | Release, set strength, mold geometry, technique |
| 8. Conditioning | Develop target moisture and handling properties | Time, humidity, airflow, water activity where relevant |
| 9. Finishing | Apply oil, sugar, acid-sugar or other finish | Surface dryness, coating rate, adhesion |
| 10. QC & packaging | Protect the finished product and verify specification | Weight, pH, Brix, texture, water activity, seal integrity |
1. Start With the Gummy Formula
A gummy formula is more than sugar plus gelatin. The finished texture depends on the interaction between the gelling system, sweeteners, water, acids, flavors, colors and any active or functional ingredients.
Most traditional gummies use a combination of sugars or syrups to build sweetness, solids and texture. The gelling phase may use gelatin, pectin, or another hydrocolloid system. Acids create tartness and can also influence gel formation. Colors and flavors shape the sensory profile, while oils, emulsions, vitamins, minerals, botanicals or other ingredients introduce additional processing constraints.
If you want a deeper ingredient breakdown, see What Are Gummy Bears Made Of? and our Pectin vs. Gelatin Gummies comparison.
2. Weigh and Prepare the Ingredients
Repeatability starts before the cooker. Ingredients should be weighed accurately and staged in the order required by the formula. Commercial operations typically separate major ingredients from minor additions so that acids, colors, flavors and functional ingredients are not accidentally exposed to unnecessary heat or long hold times.
Gelatin commonly requires controlled hydration before dissolution. Our gelatin blooming guide explains why hydration and Bloom strength are different concepts and why a generic water ratio should not be forced onto every formula.
Pectin systems require their own preparation strategy. Different pectins gel under different combinations of soluble solids, acidity and calcium, so the correct dispersion and activation method depends on the pectin being used.
3. Cook the Gummy Mass
The cooking stage dissolves ingredients, develops the syrup phase and removes enough water to reach the formula's target concentration. Commercial systems may use open kettles, batch cookers, vacuum cookers or continuous cooking equipment depending on output, formula and plant design. For a dedicated batch-cooking option, see the 100L Commercial Gummy Cooker.
Rather than relying on one temperature number, manufacturers monitor the variables that matter for the actual formula. These can include temperature, time, soluble solids or Brix, viscosity and mass behavior. Two gummy recipes can reach similar final textures through different cooking profiles.
Excessive heat or long hot holds can create problems. Gelatin can lose performance under unfavorable heat and acid exposure, flavors can flash off, colors can shift, and sensitive actives can degrade. The production goal is not simply to make the batch as hot as possible; it is to reach the required state efficiently and reproducibly.
4. Add Acids, Flavors, Colors and Active Ingredients
Many ingredients are intentionally added after the main cook or during a controlled finishing stage. The exact sequence depends on the formula and equipment.
Acid timing is particularly important because pH can influence gel behavior and because prolonged hot acidic exposure may affect gelatin. Flavor systems may contain volatile components, while vitamins and other functional ingredients can have temperature limits. A commercial process should therefore define the acceptable addition temperature, mixing time and maximum hold time before depositing.
5. Deposit or Mold the Gummies
Once the gummy mass is ready, it must be formed while it is still within its depositing window. The two broad approaches are starch molding and starchless molding into reusable molds.
In traditional starch mogul production, impressions are formed in trays of conditioned starch and gummy mass is deposited into those cavities. After setting or conditioning, the trays are emptied, the gummies are separated from the starch, and the starch is recovered and reconditioned for reuse.
In a starchless process, gummy mass can be deposited into reusable molds made from materials such as silicone, depending on the line and formulation. This removes the starch-tray loop but requires a formula, mold and demolding process that work together.

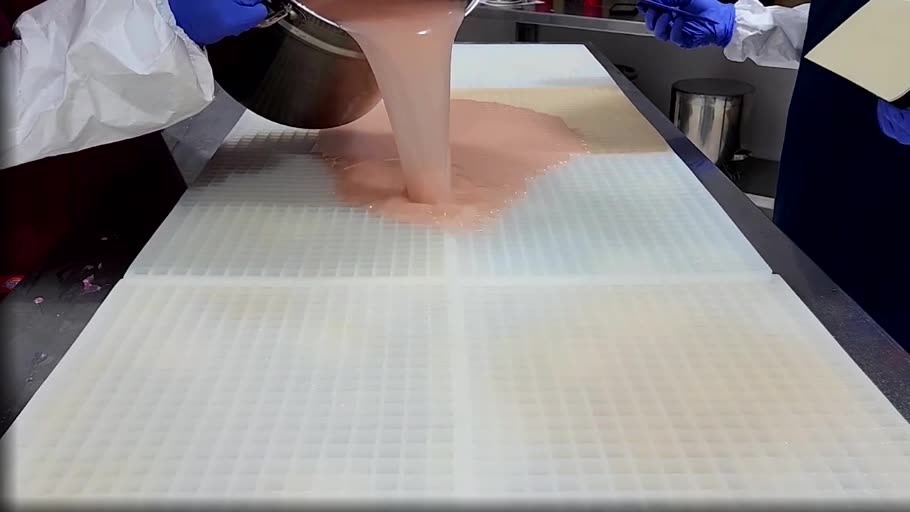

Depositing can range from manual or pour-and-scrape filling to servo-controlled depositors with multi-nozzle heads. The correct method depends on target throughput, cavity arrangement, viscosity, piece weight and whether the product needs single-color, multi-color, layered or center-filled deposits. If automated filling is part of the line, compare our commercial gummy depositors against the actual mold and formula requirements.
How Are Gummies Made With Silicone Molds?
Silicone molds provide permanent, reusable cavities instead of forming a new cavity in starch for every cycle. In a commercial silicone process, the gummy mass can be deposited directly through nozzles or distributed across the cavity field using another validated filling method.
Permanent molds are especially useful when producers want repeatable custom geometry, frequent SKU changes, smaller production runs, R&D flexibility or a process without starch handling. They are not automatically the best answer for every plant; high-output traditional starch moguls remain a major production method.
For mold materials, cavity design, temperature considerations and care, see our Complete Guide to Silicone Molds.
6. Let the Gummies Set
After depositing, gummies must develop enough structure to be handled and demolded. Gelatin typically forms a thermoreversible gel as the mass cools. Pectin can set through a different mechanism depending on pectin type, soluble solids, pH and calcium conditions.
Setting is not the same thing as drying. A gummy can be firm enough to demold while still needing additional conditioning to reach its target surface, moisture distribution or texture. That distinction is covered in Gummy Curing vs. Drying.
Commercial starchless processes can be designed for rapid setting. GELITA describes modern starch-free systems in which specialized fast-setting gelatin, adjusted cooking conditions and reusable silicone molds work together to reduce the time to demolding compared with conventional starch processes. That is a process-specific example, not a promise that any gelatin recipe can be moved into silicone molds without reformulation.
7. Demold the Gummies
When the gummy has enough structural strength, it is removed from the mold or separated from the molding medium. The demolding method depends heavily on the production system.
For flexible silicone molds, a common mistake is pulling the gummy by a delicate feature. A safer technique is to support the candy and peel the flexible mold away from the cavity, progressively releasing the perimeter. Our demolding guide covers the mechanics in detail.
If gummies remain tacky or bonded to the mold, do not automatically reach for more release oil. Under-setting, excess moisture, formula imbalance, residue and cavity geometry can all contribute. See How to Stop Gummies From Sticking to Molds.
8. Cure, Dry or Condition the Gummies
Post-demolding conditioning is one of the most misunderstood stages of gummy making. Depending on the recipe and process, gummies may need time for moisture redistribution, surface drying, texture development or water-activity adjustment.
There is no responsible universal instruction such as “dry every gummy for 24 hours.” The required endpoint depends on piece size, gel system, solids, surface area, humidity, airflow and the intended finished specification.
In a commercial plant, conditioning should be controlled with measurable criteria. If shelf stability matters, water activity is more informative than simply touching the surface and deciding that it feels dry.
9. Apply Oil, Sugar or Sour Coating
After the surface is ready, gummies may be finished with a light oil or wax system for shine and anti-sticking behavior, or with sugar and acid-sugar blends for a sanded or sour finish.
Coating too early can trap moisture or create a wet, dissolving surface. Acidic sanding blends are especially sensitive to moisture pickup. If gummies develop a wet surface after production, diagnose the cause with our Why Do Gummies Sweat? guide before trying to hide the problem under additional coating.
10. Inspect and Package the Finished Gummies
Commercial gummy production ends with verification, not with demolding. The exact quality-control plan depends on the product, but common checks include:
- piece weight and dimensional consistency;
- appearance, color and cavity definition;
- texture or firmness;
- Brix or soluble-solids measurements during process control;
- pH where relevant to formulation and specification;
- water activity for products where shelf stability depends on it;
- active-ingredient potency and uniformity for fortified products;
- package seal integrity and net weight.
Packaging then protects the gummy from moisture exchange, oxygen, heat, light and physical damage according to the product's needs. A shelf-life claim should come from a validated product and package system, not from a generic internet estimate.
Gelatin vs. Pectin Gummy Manufacturing
| Production issue | Gelatin gummies | Pectin gummies |
|---|---|---|
| Primary gel mechanism | Cooling-driven gelatin network | Depends on pectin type, solids, pH and/or calcium |
| Process sensitivity | Heat and acid history matter | Acid, solids and calcium control can be critical |
| Texture | Elastic, chewy profile | Often cleaner, shorter bite |
| Depositing window | Formula/equipment dependent | Can be narrow once gel conditions are triggered |
| Dietary positioning | Animal-derived unless using another system | Plant-derived |
These are general differences, not process recipes. Commercial manufacturers should validate the specific hydrocolloid grade and supplier recommendations.
How Are Gummy Bears Made in a Factory?
At factory scale, the process becomes an integrated system. Major ingredients may be automatically dosed; cookers control concentration; pumps transfer the mass; color, flavor and acid additions can be metered; depositors dose cavities; trays or molds move through setting or conditioning; demolding and finishing can be mechanized; and checkweighing plus packaging equipment handle the final product.
A starch mogul integrates tray handling, starch conditioning, cavity printing, depositing and starch recovery. A starchless line instead uses permanent molds and a different mold-handling and demolding system. Both can be highly automated.
How Long Does It Take to Make Gummies?
The answer ranges from relatively short starchless cycles to much longer traditional conditioning processes. Formula, molding technology, piece size and target moisture all matter.
For example, GELITA's current Fast Forward Process describes a specialized gelatin, cooking process and reusable-silicone-mold system designed to reduce gelatin gummy manufacturing time to the point of demolding from roughly a day-scale starch process to under two hours. That performance belongs to that integrated technology; it should not be generalized to conventional gummy recipes.
Why Commercial Gummy Batches Fail
Common failure modes usually trace back to a controlled variable rather than to the mold alone:
- Gummies do not set: wrong gel conditions, ingredient error, excess water or damaging heat/acid history.
- Gummies tear during demolding: insufficient set, weak formulation, aggressive removal or difficult geometry.
- Gummies sweat: syneresis, condensation, humidity pickup or separated surface ingredients.
- Pieces vary in weight: inconsistent deposit volume, mass temperature/viscosity drift or uneven filling.
- Coating dissolves: the surface was too wet or the finished product is taking up moisture.
- Texture changes during storage: moisture migration, packaging, formulation or storage conditions are changing the product.
Frequently Asked Questions
Are gummies baked?
Normally, no. Gummies are generally cooked as a liquid or syrup mass, then deposited into molds and allowed to set. The cooking stage occurs before molding.
Are gummy bears made in molds?
Yes. They can be formed in impressions made in starch or in permanent reusable molds, depending on the production system.
Why is starch used to make gummies?
Traditional starch mogul systems use conditioned starch as the molding medium. Cavities can be stamped into the starch, filled with gummy mass, then later emptied so the candy and starch can be separated. The starch is typically reconditioned and reused within the system.
Can gummies be made without starch?
Yes. Starchless processes use permanent molds made from materials such as silicone or other suitable materials. Formula and equipment must be designed for that process.
Do gummies need to dry after molding?
Some do, while other validated processes can demold and finish without a long drying stage. The correct requirement depends on the formula, molding method and finished specification.
What makes gummy bears chewy?
The gelling system, concentration, water content, sweetener system and conditioning all contribute. Gelatin is particularly associated with an elastic, chewy bite.
The Bottom Line
Gummy manufacturing is a controlled chain from formula to package. Ingredients establish the chemistry, cooking establishes concentration, depositing establishes piece geometry and weight, setting establishes handling strength, conditioning establishes the final physical state, and packaging protects that state.
For a broader technical path through commercial production, continue in the Gummy Mold Learning Center and our Silicone Molds Complete Guide.
Technical References
- GELITA — Starch-Free Gummy Production: Faster, Safer, Same Taste, an example of an integrated fast-setting gelatin, adjusted cooking process and reusable silicone-mold production system.
- GELITA — Get Set… Go! Gelatin Compatible With Starch-Free Production, background on traditional starch-based and starchless gummy processes.
This article provides general confectionery-production information. Exact temperatures, times, pH, solids and process limits must be validated for the specific formula, ingredients, equipment and facility.
